Sanitary Manhole Ladder & Landing Repairs — Township of Wellington North

New aluminum ladder and landing installed inside a deep sanitary manhole in Wellington North
Client / Owner
Township of Wellington North
Location
Arthur, Ontario
Service
Confined Space Entry Projects
Completed
August 2022

The problem. Two sanitary manholes on Preston Street in Arthur, Ontario — MH#16 and MH#22 — needed interior repairs that could only be done by a crew equipped for confined space entry. Access hardware had deteriorated, and in MH#22 the drop pipe needed to be secured.

The repair. Our crew entered both structures under confined space procedures. MH#16 was high-pressure water cleaned to expose sound material, then its ladder and landing were repaired; in MH#22, the drop pipe was secured. All work was completed inside live sanitary structures and documented in a follow-up report to the Township.

The result. Both manholes were left safe to enter and maintain — ladders, landings, and drop pipe secured — with photographic before-and-after records filed with the Township of Wellington North.

Project photos

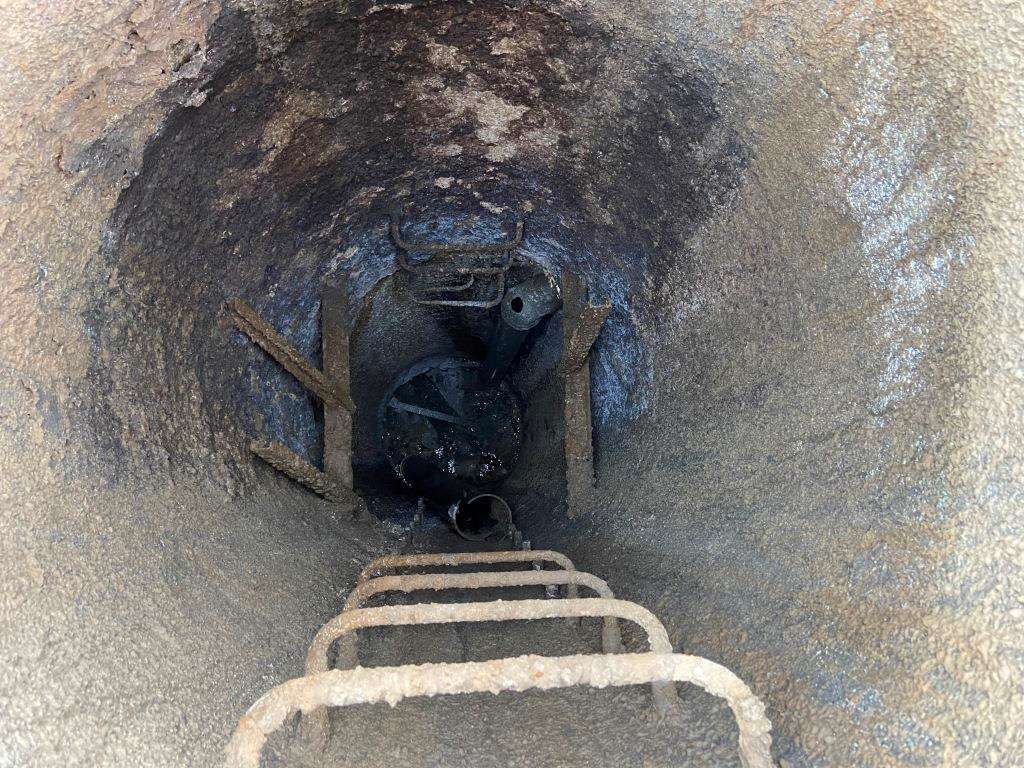

Corroded manhole ladder rungs and failed landing before replacement
Before — corroded rungs and a failed landing in the deep manhole.

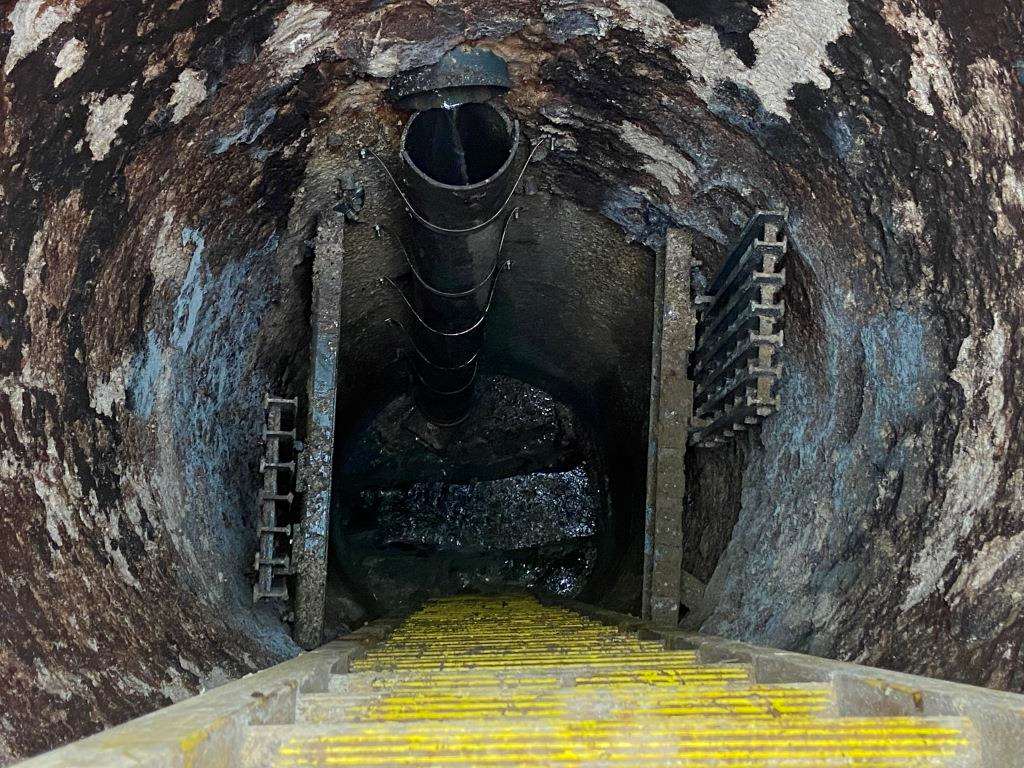

New ladder and landing anchored inside a sanitary manhole after installation
After — new ladder sections and landing anchored to the wall.

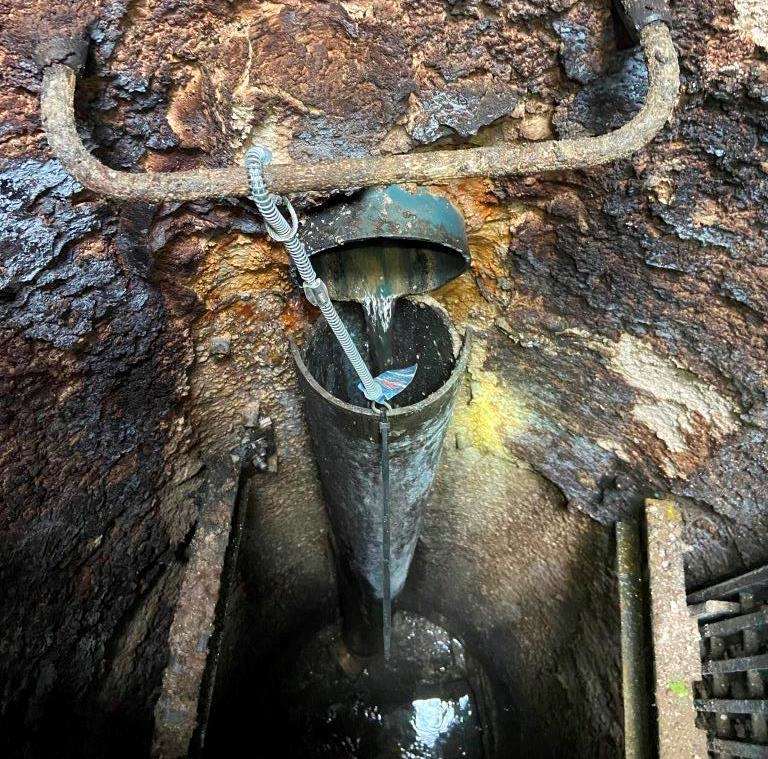

Sanitary manhole drop pipe re-secured to the manhole wall
Drop pipe secured at MH#22.

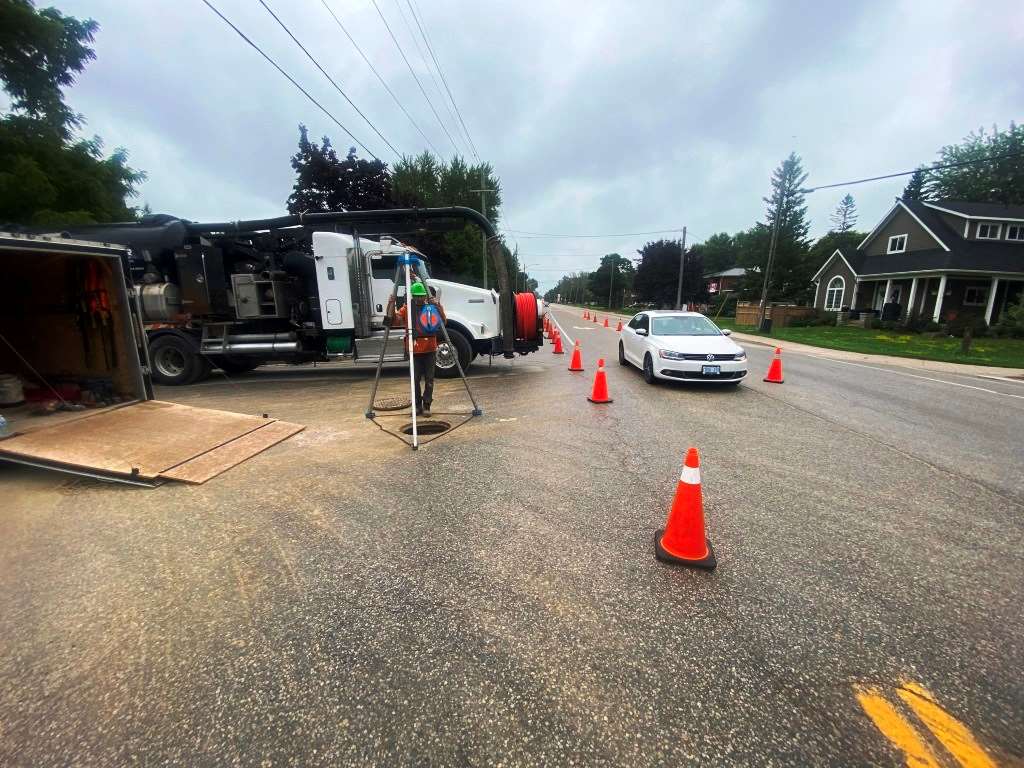

SG Services truck and traffic cones set up over a manhole on a rural road
Confined space entry set-up on the roadway.
